| 產品說明Introduction： 新能SZS型系列水煤漿蒸汽、熱水鍋爐是新一代環保產品。具有燃料成本低和污染物排放低的特點，是燃油、燃煤鍋爐的***佳替代產品。該系列鍋爐為自然循環、室燃水管蒸汽鍋爐，微負壓燃燒，平衡通風。本體采用縱向布置得上、下兩只鍋筒，燃燒器布置在前墻，水煤漿在爐膛內充分燃燒（燃燒效率>98%），產生的高溫煙氣經爐膛出口橫向沖刷對流管束，再經布置在鍋爐后部的空氣預熱器換熱，通過脫硫除塵器的處理，***后由引風機將煙氣送至煙囪排入大氣。 水煤漿燃燒效率（>98%），鍋爐設計熱效率高（接近90%）； 排放符合國家《鍋爐大氣污染物排放標準》一類地區環保要求； 采用前置穩燃爐膛結構和合理的爐膛截面、容積，使產品能適應多種水煤漿的燃燒，并有效控制爐膛的結焦現象。 |
WNS automatic oil(gas)-fired steam/hot water boiler is the horizontal,three-return,fire-return,fire-tube boiler,mainlu consisting of housing,tank,diversion smoke chamber and fire tubes.Boiler can use light oil,heavy oil,natural gas,liquefied gas and urban coal gas.
The wet-backj corrugated tank can effectively reduce the thermal stress and improve the safety and life of boiler.
Heatingj areas are laid summetrically for reasonable pressure and expansion.
Sound layout of heating areas ensure good water circulation and heat ecchange,optimizing the effect of heat transfer and increasing the heating efficiency.
Steam boiler integrates the lower-level combustion chamber to expand the range of safe water level and stesm space in the boiler and to guarantee the good-quality steam.
Full butt-welding wet-back structure can avoid the rear wall from damage of hot fume and provide the reliable operation of boiler.
Select the worldly well-known burner and advanced automatic control systerm for more stable combustion,easier operation and safe and more reliable running.
產品范圍Scope：
蒸汽鍋爐：蒸發量2-20t/h,壓力1.0-2.5MPa Steam boiler:evaporation capacity:2-20t/h,pressure:1.0-2.5MPa
熱水鍋爐：供熱量1.4-14MW，壓力0.7-1.25MPa Hot water boiler:delivered heat:1.4-14MW,pressure:0.7-1.25MPa

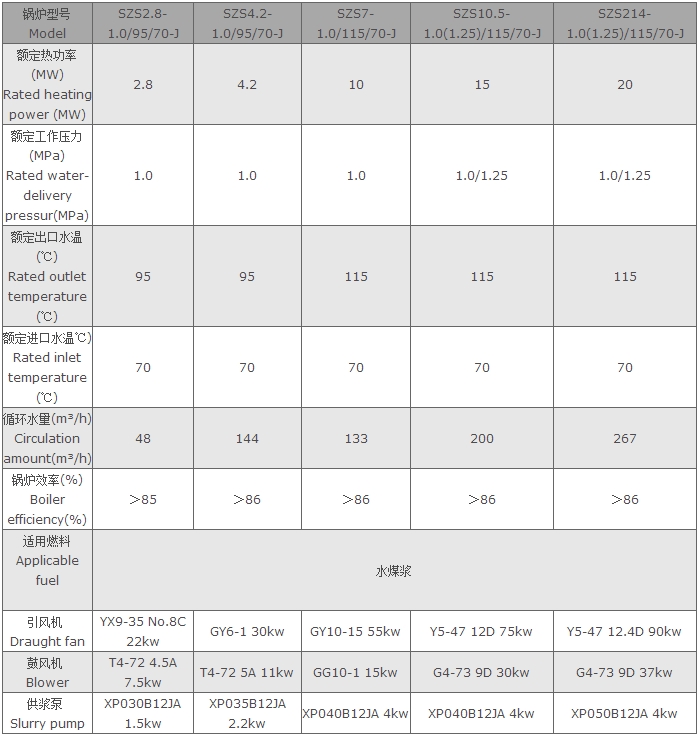

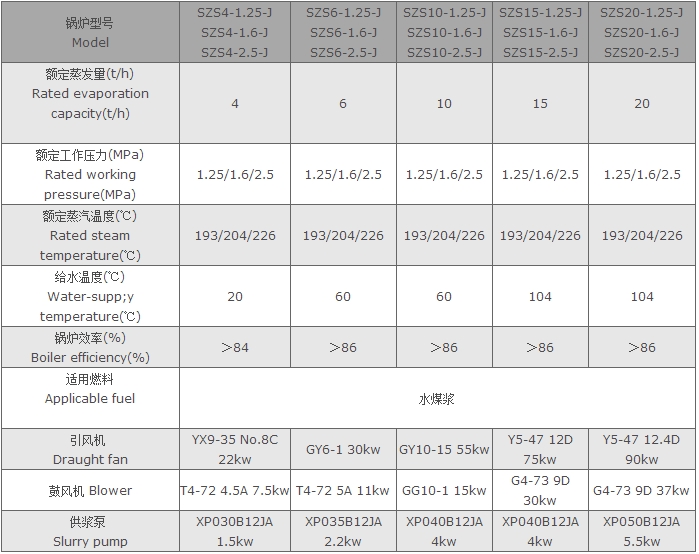

列表鍋爐品種為本廠代表產品，如需其他型號參數鍋爐可參閱有關圖紙資料。
Listed models are tyical.IF other models are need,please refer to drawings and data available.
